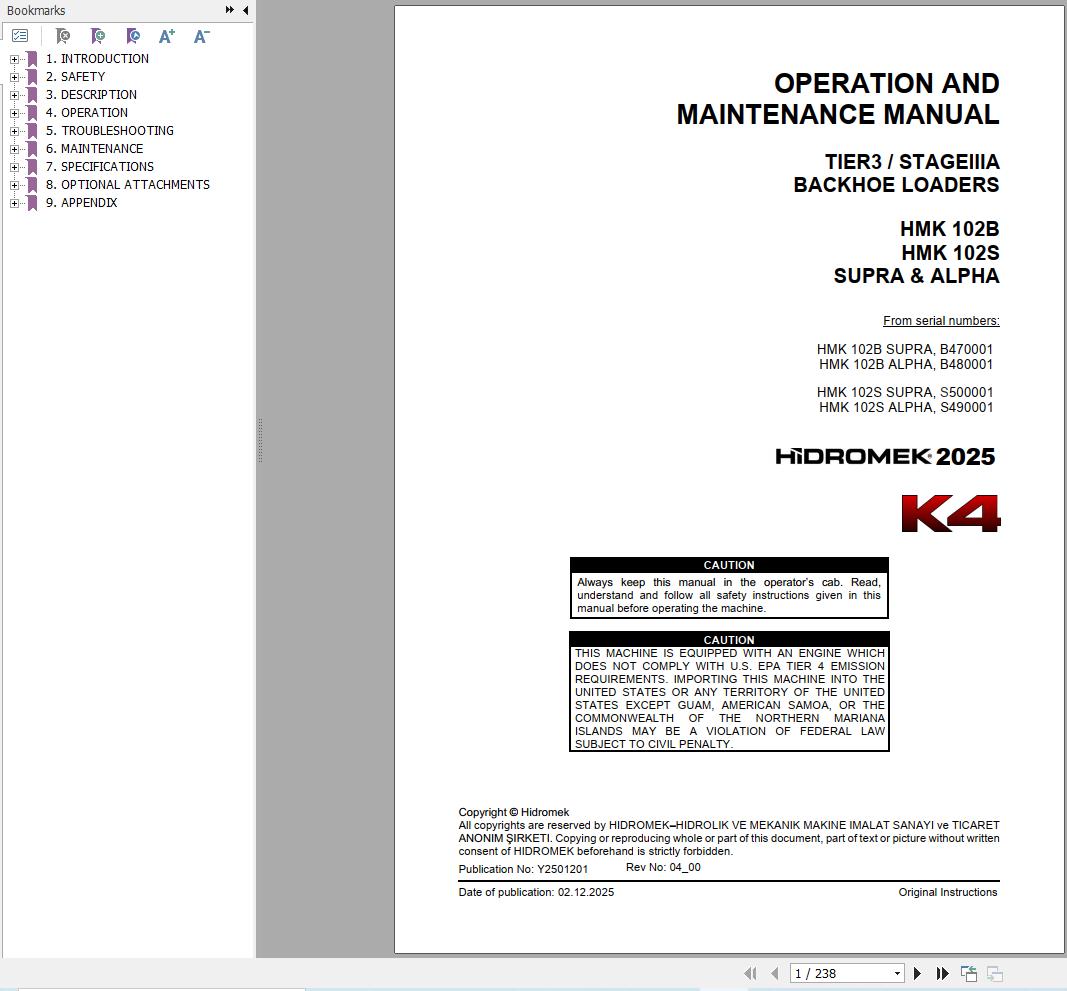

Hidromek HMK102B HMK102S SUPRA & ALPHA K4 Operation Manual Y2501201 2025 PDF

Hidromek HMK102B HMK102S SUPRA & ALPHA K4 Operation Manual Y2501201 2025 PDF

Size: 23.85 MB
Language: English
Make: Hidromek
Machine: Backhoe Loader
Document: Operation and Maintenance Manual
Model: Hidromek HMK102B SUPRA, HMK102B ALPHA , HMK102S SUPRA, HMK102S ALPHA
Part Number: Y2501201
Publication Date: 2025
Page: 238 Pages

Detail Contents:
1. INTRODUCTION

• 1.1. COPYRIGHT
  1.2. DRIVING LICENSE
  1.3. SPARE PARTS AND SERVICE
  1.4. ENVIRONMENTAL STANDARDS
  1.5. SAFETY NOTICES
  1.6. OTHER NOTICES
  1.7. IDENTIFICATION PLATES
  1.8. ENGINE DESCRIPTION
  1.9. BACKHOE LOADER

2. SAFETY

• 2.1. GENERAL SAFETY INFORMATION
  2.2. SAFETY PRECAUTIONS
  2.3. PRE-START SAFETY
  2.4. SAFETY DURING OPERATION
  2.5. INSPECTION & MAINTENANCE SAFETY
  2.6. BATTERY SAFETY, MAINTENANCE AND WARNINGS
  2.7. WARNING LABELS & DECALS
  2.8. PROHIBITED MACHINE OPERATION
  2.9. END OF WORKSHIFT MAINTENANCE & INSPECTION

3. DESCRIPTION

• 3.1. FRONT CONSOLE

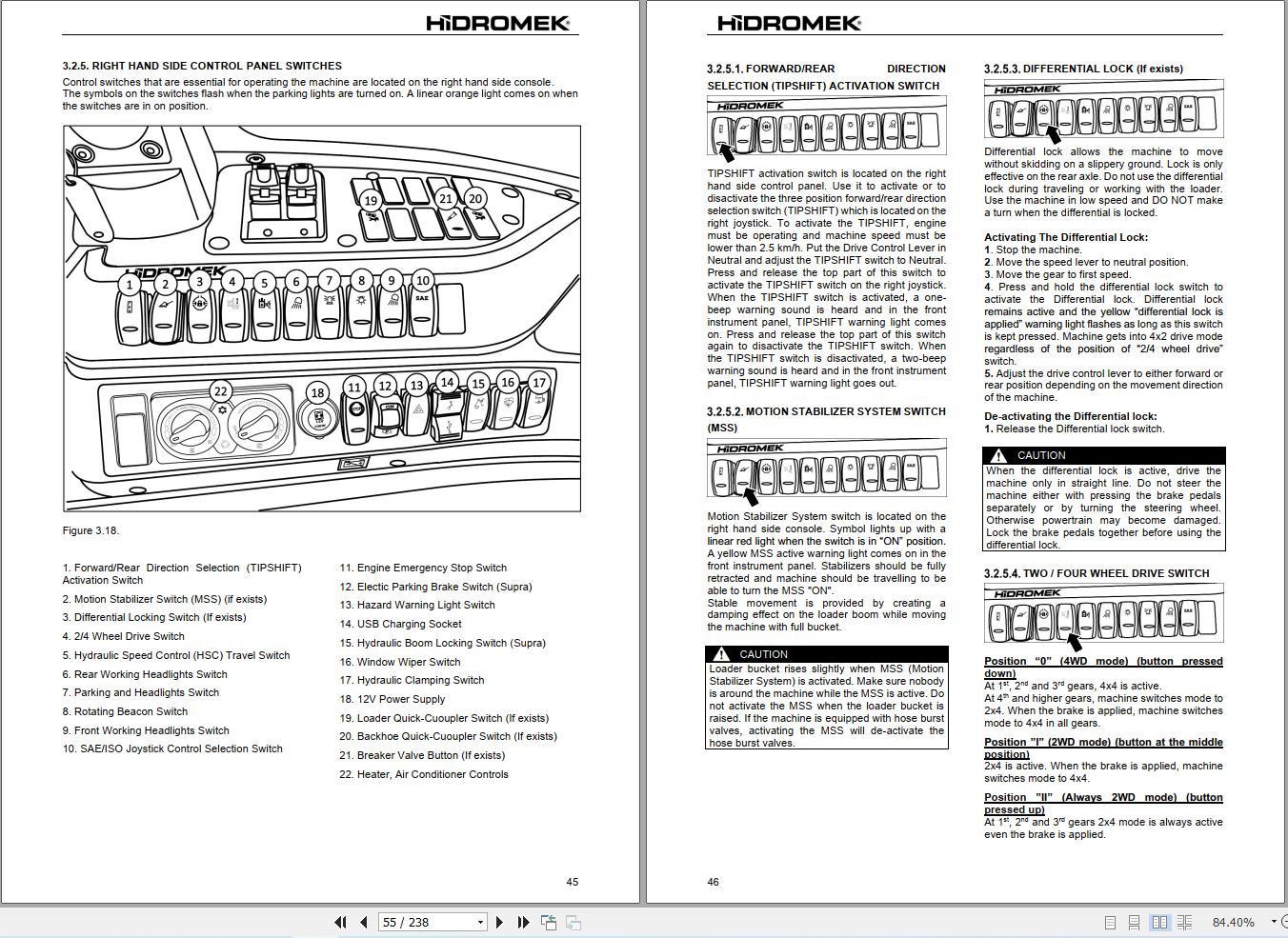

  3.2. RIGHT HAND SIDE INSTRUMENT PANEL
  3.3. LEFT HAND SIDE CONSOLE
  3.4. OPERATOR’S SEAT
  3.5. JOYSTICKS
  3.6. LOADER JOYSTICK (MECHANICALLY CONTROLLED MACHINES)
  3.7. BACKHOE CONTROL LEVERS (MECHANICALLY CONTROLLED MACHINES)
  3.8. REAR WINDOW AND REAR WINDOW WIPER
  3.9. ROOF
  3.10. SAFETY STRUT
  3.11. TOOLBOX
  3.12. DOOR
  3.13. DOOR WINDOW FIXING MECHANISM
  3.14. OPENING THE ENGINE HOOD
  3.15. BATTERY DISCONNECT SWITCH

4. OPERATION

• 4.1.1. GENERAL CONTROL
  4.1.2. TYRE INSPECTION
  4.1.3. GETTING IN AND OUT OF THE CAB
  4.2. ENGINE
  4.3. BASIC PRECAUTIONS FOR OPERATION IN COLD WEATHER
  4.4. DRIVING THE MACHINE
  4.5. BRAKING
  4.6. PREPARATIONS FOR TRAVEL
  4.7. STOPPING AND PARKING THE MACHINE
  4.8. UNINTENTIONAL SHUT DOWN DURING TRAVEL
  4.9. ENGAGING ATTACHMENT SAFETY LOCKS
  4.10. CONTROLLING HYDRAULIC CLAMP CYLINDERS
  4.11. SIDESHIFTING THE BACKHOE
  4.12. TELESCOPIC ARM (OPTIONAL)
  4.13. SELECTING STEERING MODE (HMK 102S)
  4.14. LOADER OPERATION
  4.15. THE BACKHOE OPERATION
  4.16. REPLACING ATTACHMENTS
  4.17. TRANSPORTING THE MACHINE
  4.18. TOWING PROCEDURE OF A DISABLED MACHINE
  4.19. LIFTING BY A CRANE
  4.20. PRESERVING THE MACHINE FOR STORAGE
  4.21. INSTRUCTIONS ON WITHDRAWAL FROM USE AND UTILIZATION

5. TROUBLESHOOTING

• 5.1. ENGINE MALFUNCTIONS
  5.2. HYDRAULIC SYSTEM MALFUNCTIONS
  5.3. TRANSMISSION MALFUNCTIONS
  5.4. BRAKE SYSTEM MALFUNCTIONS
  5.5. ELECTRICAL SYSTEM MALFUNCTIONS

6. MAINTENANCE

• 6.1. MAINTENANCE PRECAUTIONS
  6.2. PERIODIC MAINTENANCE
  6.3. INSPECTION & MAINTENANCE CHART
  6.4. LUBRICANTS & FLUIDS
  6.5. PRE-START INSPECTION &MAINTENANCE (EVERY 8 HOURS)
  6.6. WEEKLY INSPECTION & MAINTENANCE (EVERY 50 HOURS)
  6.7. EVERY 100 HOURS INSPECTION& MAINTENANCE
  6.8. EVERY 250 HOURS INSPECTION & MAINTENANCE
  6.9. EVERY 500 HOURS INSPECTION & MAINTENANCE
  6.10. EVERY 1000 HOURS INSPECTION& MAINTENANCE
  6.11. EVERY 1500 HOURS MAINTENANCE
  6.12. EVERY 2 YEARS MAINTENANCE

7. SPECIFICATIONS

• 7.1. TECHNICAL SPECIFICATIONS OF HMK 102B
  7.2. TECHNICAL SPECIFICATIONS OF HMK 102S
  7.3. LIFTING REGULATIONS AND SAFE WORKING LOADS (SWL)
  7.4. CYLINDERS
  7.5. SOUND and VIBRATION

8. OPTIONAL ATTACHMENTS

• 8.1. REAR VIEW SYSTEM
  8.2. LOADER GROUP
  8.3. BACKHOE GROUP
  8.4. SINGLE ACTING LINE
  8.5. DOUBLE ACTING LINE
  8.6. HYDRAULIC BREAKER
  8.7. HYDRAULIC AUGER
  8.8. QUICK-COUPLER

9. APPENDIX

• 9.1. USAGE OF HAND SIGNALS
  9.2. TABLE OF TORQUE VALUES FOR FASTENERS
  9.3. CONTACTS
  9.4. NOTES
